High pressure chemical industries side inlet single bag filter housing vessels
Versatile design for most industry applications
Our durable bag filter design to give you the convenient in handling your filtration process, easy opening mechanism and bag filter fixing ring to ensure good sealing for both plastic collar fully welded bag filter and sewn felt or NMO bag filter. It is suitable for general filtration requirement in all the industrial applications with liquid of low to medium viscosity.
Working principle

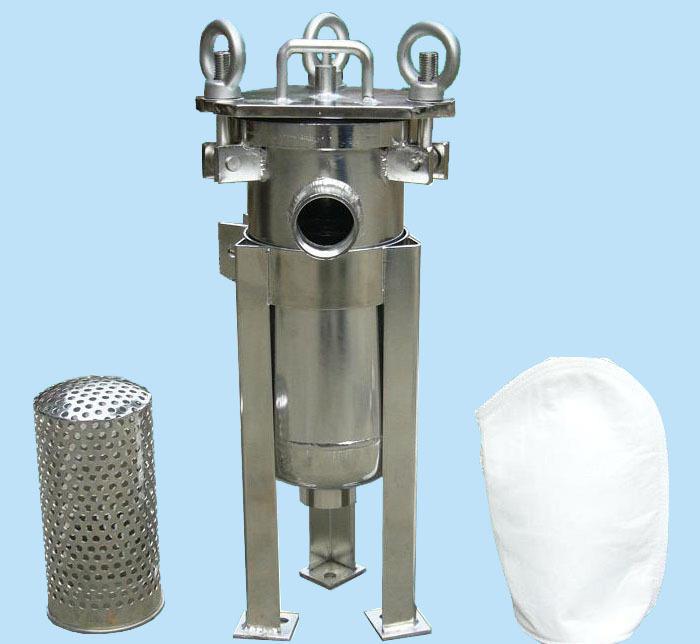

The filter bag is supported by the stainless steel mesh inside. The liquid flows into the chamber via inlet, and go through the filter bag. The impurities will be blocked into the filter bag.The filter bag can be reused repeatedly after washing or cleaning. It is easy to replace the filter bags.
The filter is features of no material consumption and low operation cost.
Features
Versatile design for convenience handling swing eye bolt cloure construction , unique design for perfect bag sealing fix perfectly with all standard filter bags
Non code design
Max flow rate
Size 1 -20m3/h
Size 2- 40m3/h
Size 3- 6 m3/h
Size 4- 12 m3/h
Remarks
Max capacity is the reference value base on water test, the actual value can be different because of liquid viscosity, solid content and pressure difference.
The material can be carbon steel,SUS 304 and SUS 316L and PP.
According to the nature and temperature of the material filtered, the O Ring material can be customized to meet your needs
The lock method of the filter can be clamp type , hasp type and eye bolts types.
Technical parameter
Bag Filter housing vessel
| Model | Filtration area (m2) | diameter of cylinder(mm) | Size of import and export(inch) | Equipment height(mm) | Filtration flow (m3/h) |
| 1P1S | 0.25 | 200 | 2“ | 735 | 20 |
| 1P2S | 0.5 | 200 | 2” | 1050 | 40 |
| 1P3S | 0.1 | 114 | 1" | 360 | 8 |
| 1P4S | 0.2 | 114 | 1" | 520 | 15 |
Packaging Details
HS code: 8421392200 for bag filter housing 304/316 liquid
1. Plastic film inside and wooden box outside
2. mostly pallets
3. We make package as customer requirement
4. We are sure our package well protected the goods well.
5. usually our goods by sea, if small orders, we also can choose the airplane or Ali express or Fedex UPS DHL and so on
6. We can offer the OEM label in the woven bag if quantity is big
7. We have our own forwarder but if you have, we also can use your forwarder
Delivery Time
Shipped in 15 days after payment
